Name: Easements

Display Field: EASEMENT_NO

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>In 2003, the City of Edmond initiated a large scale easement conversion project that included building an easement GIS database. Source data used to build the easement database included a variety of sources ranging from signed individual easements, plats, ordinances, and warranty deeds. These documents provide legal descriptions for each easement. In 2006, the easement conversion project was completed and became available for internal use. The City of Edmond is currently in maintenance mode, as the easement dataset is updated every 4-8 weeks.</SPAN></P></DIV></DIV></DIV>

Copyright Text: City of Edmond Information Technology - GIS Team (hosting of the dataset in an Enterprise Geodatabase) City of Edmond Engineering Department (source of easements) City of Edmond Planning Department (source of easements)

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2102247.1557639986
YMin: 221602.6348889917
XMax: 2186840.4922640026
YMax: 264575.0948139876
Spatial Reference: 102724  (2267)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: GENERAL_EASEMENT_TYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Access and Driveway
  Label: Access and Driveway
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 235, 175, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Communications
  Label: Communications
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 170, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Drainage
  Label: Drainage
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 214, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Drainage and Utility
  Label: Drainage and Utility
  Description: N/A
  Symbol:
  Style: esriSFSBackwardDiagonal
  Color: [0, 115, 76, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Electric
  Label: Electric
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 0, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Gas and Oil
  Label: Gas and Oil
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 255, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Greenbelt and Landscape
  Label: Greenbelt and Landscape
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [38, 115, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Miscellaneous
  Label: Miscellaneous
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [223, 115, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Other
  Label: Other
  Description: N/A
  Symbol:
  Style: esriSFSBackwardDiagonal
  Color: [217, 217, 217, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Private
  Label: Private
  Description: N/A
  Symbol:
  Style: esriSFSBackwardDiagonal
  Color: [230, 230, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Roadway and ROW
  Label: Roadway and ROW
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [225, 225, 225, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Sanitary Sewer
  Label: Sanitary Sewer
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 168, 132, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Temporary
  Label: Temporary
  Description: N/A
  Symbol:
  Style: esriSFSBackwardDiagonal
  Color: [255, 85, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Unknown
  Label: Unknown
  Description: N/A
  Symbol:
  Style: esriSFSBackwardDiagonal
  Color: [104, 104, 104, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Utility
  Label: Utility
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [85, 255, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Walkways and Pedestrian
  Label: Walkways and Pedestrian
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [168, 112, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Water
  Label: Water
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 197, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
Transparency: 40
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: [EASEMENT_TYPE]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 7
Font Family: Arial
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 6000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeNone

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• EASEMENT_NO ( type: esriFieldTypeString, alias: EASEMENT_NO, length: 8 )
• BOOK ( type: esriFieldTypeString, alias: BOOK, length: 10 )
• PAGE ( type: esriFieldTypeString, alias: PAGE, length: 10 )
• DOCUMENT_NO ( type: esriFieldTypeString, alias: DOCUMENT_NO, length: 20 )
• EASEMENT_TYPE ( type: esriFieldTypeString, alias: EASEMENT_TYPE, length: 20 )
• GRANTOR ( type: esriFieldTypeString, alias: GRANTOR, length: 254 )
• STATUS ( type: esriFieldTypeString, alias: STATUS, length: 8 )
• ORIG_SOURCE ( type: esriFieldTypeString, alias: ORIG_SOURCE, length: 8 )
• REF_ESMT_NUM ( type: esriFieldTypeString, alias: REF_ESMT_NUM, length: 4 )
• REF_ORD_NUM ( type: esriFieldTypeString, alias: REF_ORD_NUM, length: 4 )
• ACCEPT_DATE ( type: esriFieldTypeDate, alias: ACCEPT_DATE, length: 8 )
• GENERAL_EASEMENT_TYPE ( type: esriFieldTypeString, alias: General Easement Type, length: 50 )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )
• Shape_Area ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

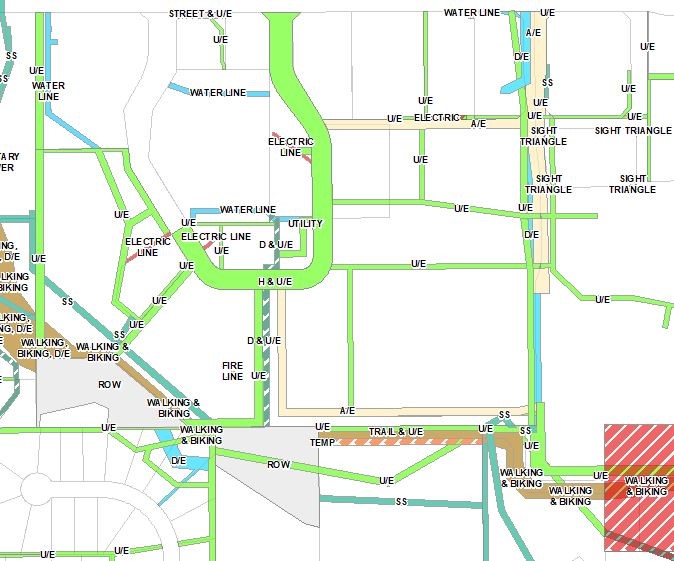

  Iteminfo   Thumbnail   Metadata
